Cleat Details
Dimensional properties of standard Hi-SPAN cleats.

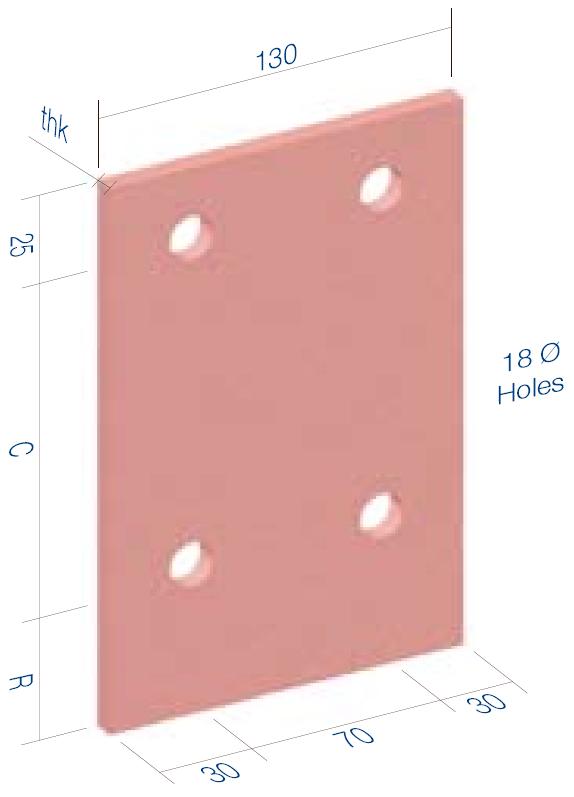

PC CLEAT
| Cleat | DIM C | DIM R | THK |
| PC15 | 67 | 50 | 6mm |
| PC17 | 87 | 50 | 6mm |
| PC20 | 116 | 53 | 8mm |
| PC23 | 146 | 50 | 8mm |
| PC25 | 146 | 62 | 8mm |
| PC30 | 196 | 62 | 10mm |
| PC35 | 241 | 62 | 10mm |
C CLEAT
| Cleat | DIM A | DIM B | THK |
| C15 | 67 | 50 | 6mm |
| C17 | 87 | 50 | 6mm |
| C20 | 116 | 53 | 8mm |
| C23 | 146 | 50 | 8mm |
| C25 | 146 | 62 | 8mm |
| C30 | 196 | 62 | 10mm |
| C35 | 241 | 62 | 10mm |

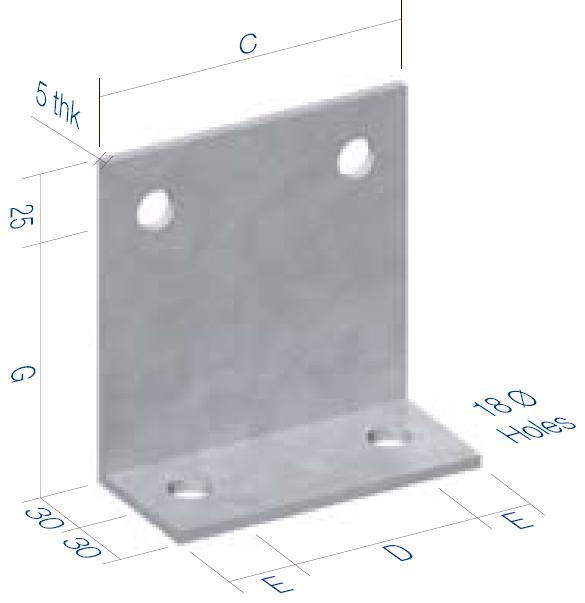

MFB CLEAT
| Cleat | DIM C |
DIM D |
DIM E |
DIM G |
| MFB50 | 94 | 50 | 22 | 110 |
| MFB67 | 111 | 67 | 22 | 110 |
| MFB87 | 131 | 87 | 22 | 110 |
| MFB116 | 160 | 116 | 22 | 120 |
| MFB146 | 190 | 146 | 22 | 120 |
| MFB196 | 240 | 196 | 22 | 130 |
| MFB241 | 285 | 241 | 22 | 130 |

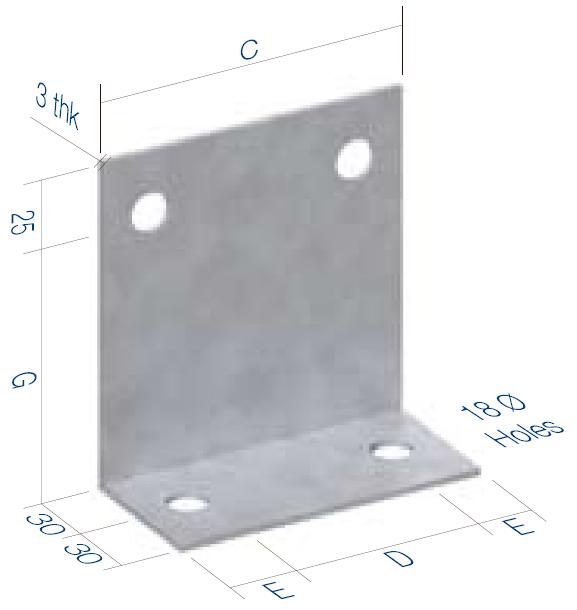

TC CLEAT
| Cleat | DIM C |
DIM D |
DIM E |
DIM G |
| TC50 | 94 | 50 | 22 | 110 |
| TC67 | 111 | 67 | 22 | 110 |
| TC87 | 131 | 87 | 22 | 110 |
| TC116 | 160 | 116 | 22 | 110 |
| TC146 | 190 | 146 | 22 | 130 |
| TC196 | 240 | 196 | 22 | 130 |
| TC241 | 285 | 241 | 22 | 130 |
ED Cleat
| Cleat | DIM B | DIM C |
| ED17 | 84 | 42 |
| ED20 | 100 | 53 |
| ED24 | 116 | 53 |
| ED28 | 146 | 53 |

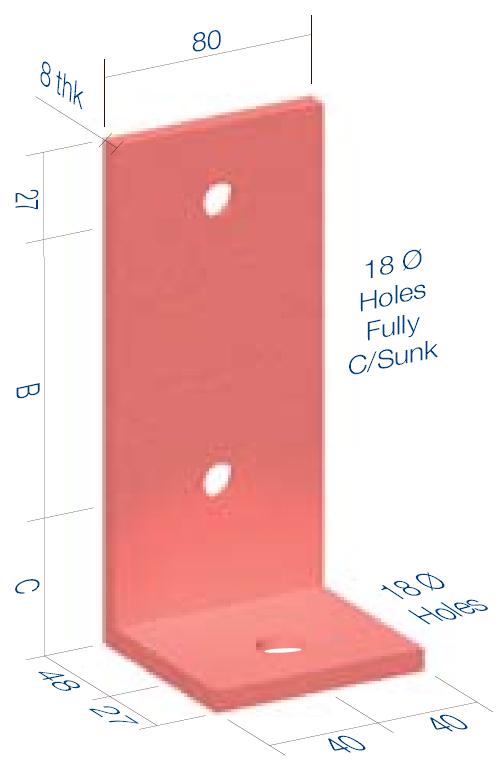

ES Cleat
| Cleat | DIM B | DIM C |
| ES17 | 84 | 42 |
| ES20 | 100 | 53 |
| ES24 | 116 | 53 |
| ES28 | 146 | 53 |
CFP Plate
| Cleat | DIM A |
DIM B |
| CFP50 | 100 | 50 |
| CFP67 | 117 | 67 |
| CFP87 | 137 | 87 |
| CFP116 | 166 | 116 |
| CFP146 | 196 | 146 |
| CFP196 | 248 | 196 |
| CFP241 | 291 | 241 |

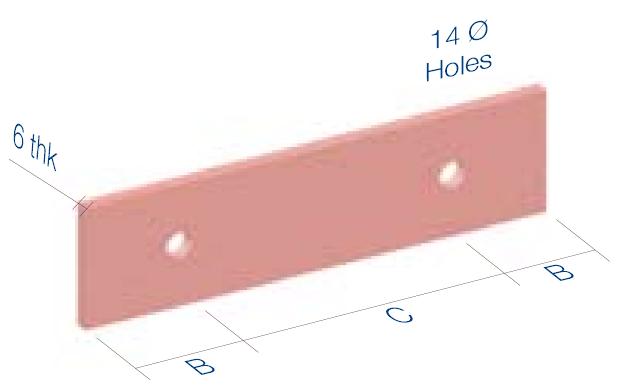

CP Plate
| Cleat | DIM B |
DIM C |
| CP156 | 36 | 67 |
| CP176 | 36 | 87 |
| CP206 | 40 | 116 |
| CP238 | 34 | 146 |
| CP258 | 47 | 146 |
| CP309 | 44 | 196 |
| CP359 | 44 | 240 |

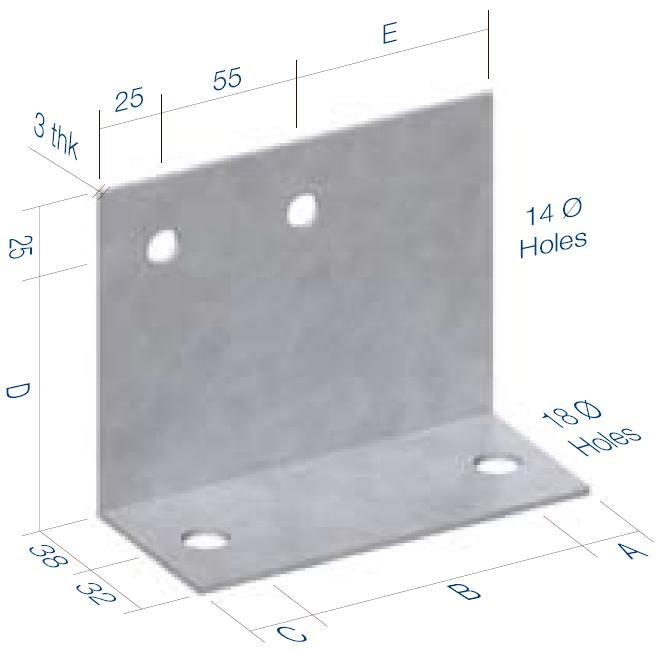

VR Cleat
| Cleat | DIM A |
DIM B |
DIM C |
DIM D |
DIM E |
| VR15 | 20 | 67 | 18 | 100 | 25 |
| VR17 | 20 | 87 | 18 | 100 | 45 |
| VR20 | 18 | 116 | 21 | 100 | 75 |
| VR23 | 20 | 146 | 19 | 120 | 105 |
| VR25 | 22 | 146 | 32 | 120 | 120 |
| VR30 | 22 | 196 | 32 | 140 | 170 |
| VR35 | 22 | 241 | 32 | 140 | 215 |
VRT Cleat

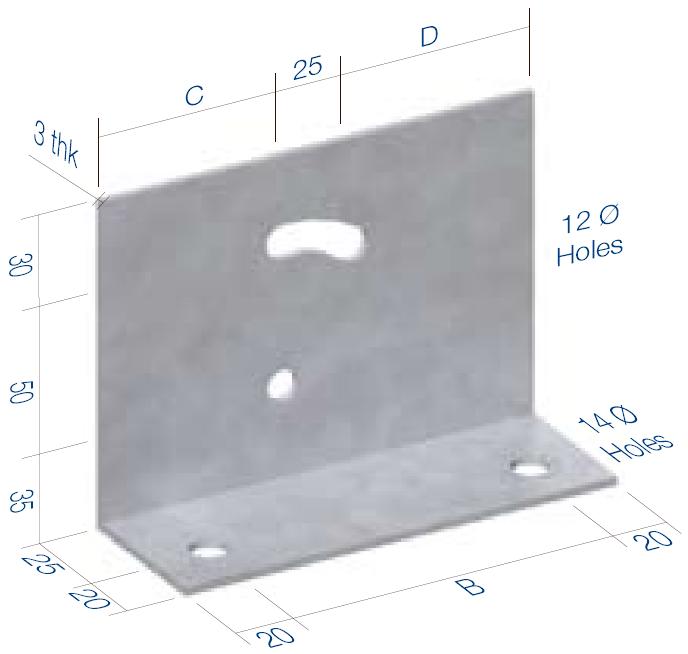

AC Cleat
| Cleat | DIM B |
DIM C |
DIM D |
| AC15 | 67 | 41 | 41 |
| AC17 | 87 | 51 | 51 |
| AC20 | 116 | 65 | 66 |
| AC23 | 146 | 80 | 81 |
| AC25 | 146 | 80 | 81 |
| AC30 | 196 | 105 | 106 |
| AC35 | 241 | 128 | 128 |

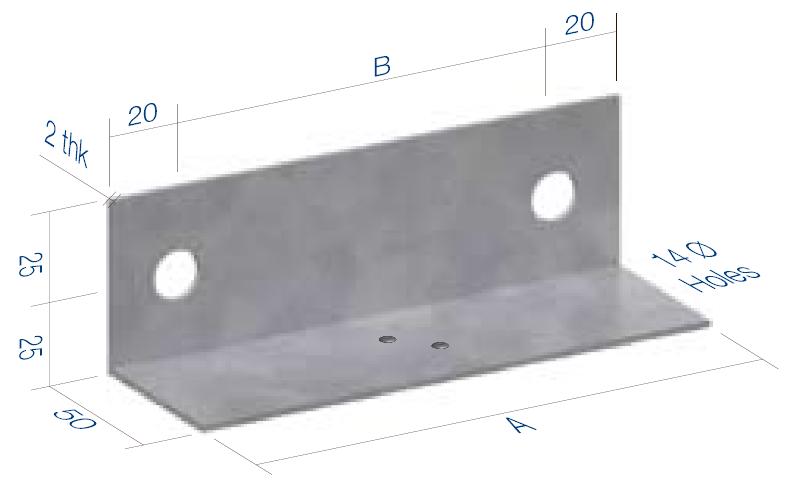

ST Cleat
| Cleat | DIM A |
DIM B |
| ST15 | 107 | 67 |
| ST17 | 127 | 87 |
| ST20 | 156 | 116 |
| ST23 | 186 | 146 |
| ST25 | 186 | 146 |
| ST30 | 236 | 196 |
| ST35 | 281 | 241 |

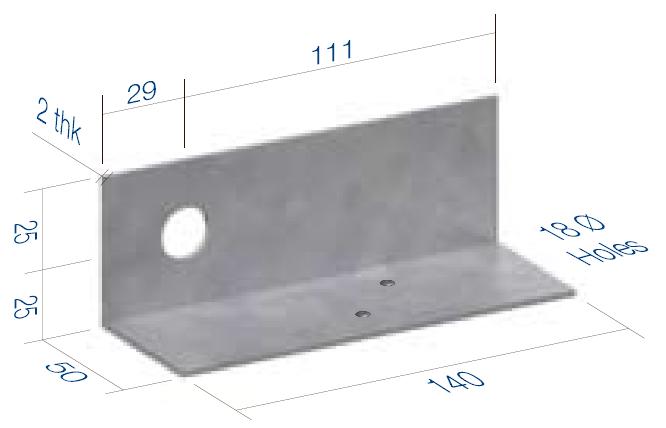

RH1 Cleat

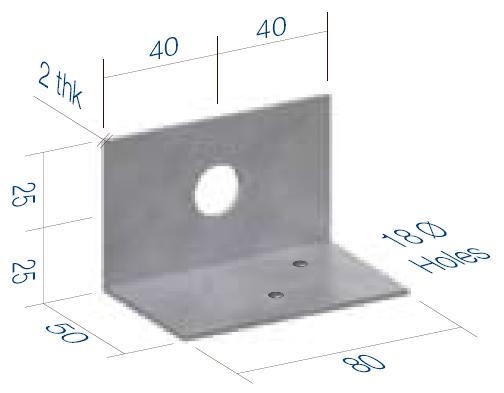

RH2 Cleat

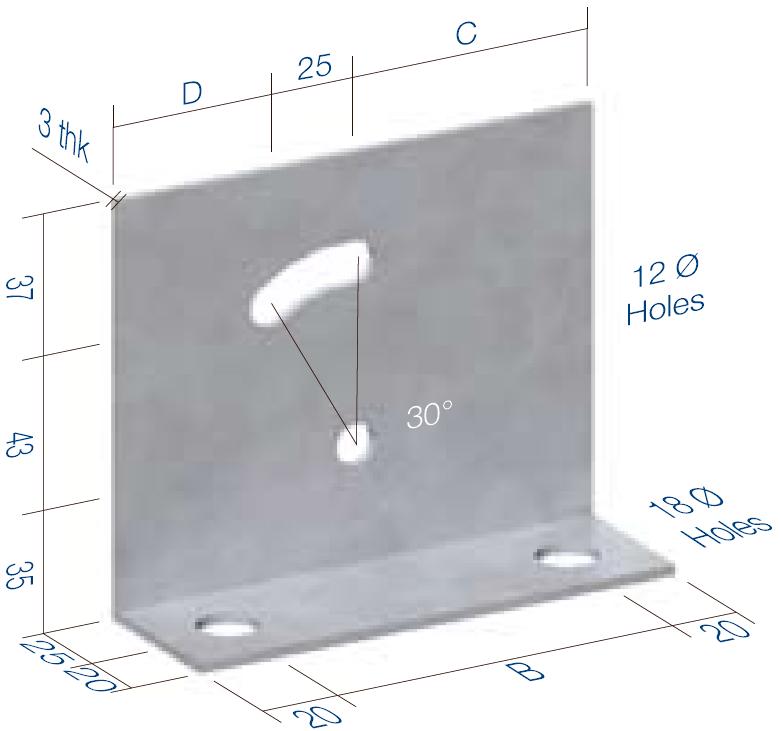

EB Cleat
| Cleat | DIM B | DIM C | DIM D |
| EB17 | 84 | 62 | 37 |
| EB20 | 100 | 70 | 45 |
| EB24 | 116 | 78 | 53 |
| EB28 | 146 | 93 | 68 |

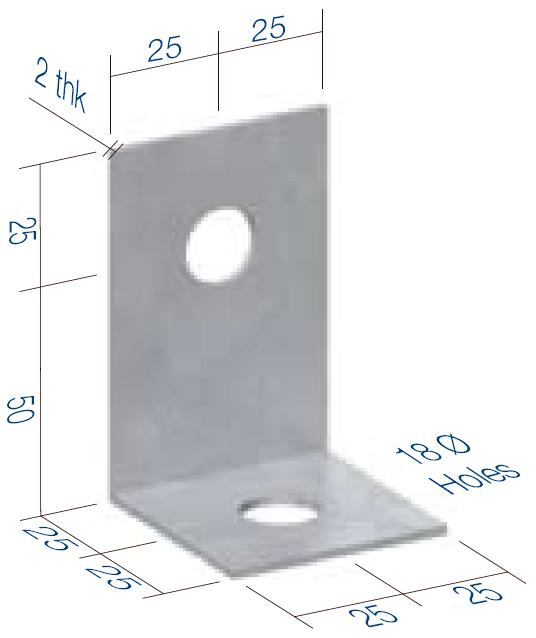

FB Cleat

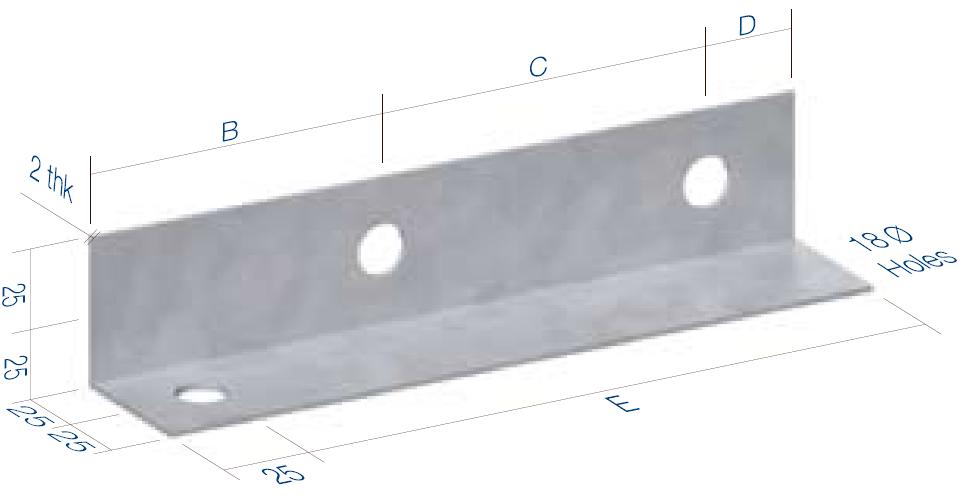

A Cleat
| Cleat | DIM B |
DIM C |
DIM D |
DIM E |
| A15 | 100 | 67 | 33 | 175 |
| A17 | 100 | 87 | 33 | 195 |
| A20 | 103 | 116 | 31 | 225 |
| A23 | 100 | 146 | 34 | 255 |
| A25 | 112 | 146 | 32 | 265 |
| A30 | 112 | 196 | 32 | 315 |
| A35 | 122 | 241 | 32 | 360 |
CW Cleat
AW Cleat
