The Hi-Span Eaves Beam is a versatile structural element combining the functions of an eaves purlin and a side sheeting rail, column tie and gutter support. Designed to cater for spans up to 12.0m, it is available in four depths of varying thicknesses with an angled top flange giving a choice of roof slopes 0^o, 5^o, 10^o, 15^o, 22.5^o, and 30^o. All design calculations are based on a single span condition therefore removing any need for continuity between spans. Loading combinations and section properties are all calculated in accordance with BS 5950: Part 5 1998.

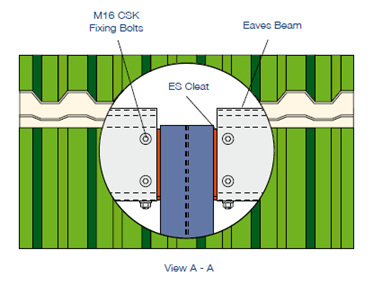

Web and flange holes can be manufactured with counter formed holes in order to suit flush face details.
